Your world at your fingertips. Its all about an intelligent life By transforming dreams into reality. By innovating the present into something spectacular for tomorrow. We always learn who we really are by the way we dream to innovate the world we live in. G-Bus complete home automation serves an intelligent system for electrical installation with automation and remote control making living more convenient, safe and flexible. The innovative G-Bus technology by GM communicate directly with KNX enabling the integration of many devices creating total flexibility in communication with your home environment at your ease.

3.5’ INTELLIGENT TOUCH SCREEN

3.5’ Intelligent Touch Screen

The G-Bus 5’ & 3.5’ Smart Control Screen grants one the power to manage every activity...

More Details
6 BUTTON TOUCH SWITCH

6 Button Touch Switch

The 6 button touch switch allows you to control and program your home lights, fan, Blinds etc ...

More Details
THERMOSTATIC PANEL

Thermostatic Panel

To control the HVAC display indoor and outdoor temperature of room....

More Details
FIBARO Roller Shutter 2

Push Button 8 Fold (4 Square)

The G-Bus push button switch helps set the ideal lights and permits smooth function....

More Details
FIBARO RGBW Controller

Push Button 8 Fold (4 Rectangle)

The 8-Fold push button not only enables you to control and program your home lights...

More Details
FIBARO Motion Sensor

Multifunction Thermostat

The G-Bus Multifunction Thermostat feature ensures complete comfort. It enables...

More Details

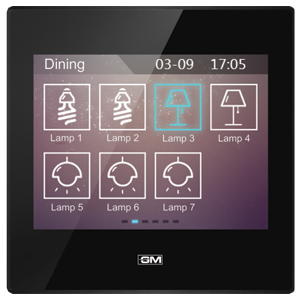

3.5’ Intelligent Touch Screen

MODEL: GCH/TF-35/01.121

The G-Bus 5’ & 3.5’ Smart Control Screen grants one the power to manage every activity in the home without any difficulty For instance, it skips the need for one to move around the house for switching the lights on or off It doesn't anticipate that one should physically close the blinds and shutters Likewise, the control of setting the ideal situation, changing the lighting and operating the AC is mere at one's fingertips It enables one to administer the security, determine the colour and customize the mood and ambience effortlessly. Screen size is 3.5’ & 5’. Comes with 10 configuration pages. Can control switching, dimming, curtain control, scene control, AC control, HVAC control, background music control, and RGBW dimming control.

3.5’ Intelligent Touch Screen

PRODUCT FUNCTIONS:

  • Capacitive touch screen
  • The firmware can be upgraded via SD card offline
  • The main interface and secondary interfaces all can turn page through sliding
  • Options of standby interface clock or electronic album
  • Connected directly to the KNX bus without a converter
  • Switching, dimming, scenes, curtain control, temperature control, timing, security, etc.
  • 5" Touch Panel - Man 18 buttons on secondary interfaces, displaying into two pages: burton functions can be configured through the database
  • 3.5" Touch Panel - Displaying into Ten pages: button functions can be configured through the database


  • Power Supply : Operating voltage 21-30V DC
  • Current Consumption : Max. 12 m A
  • Power Consumption : Max 360 mw 21-3CV. DC
  • Auxiliary Supply Voltage : 21-30V DC

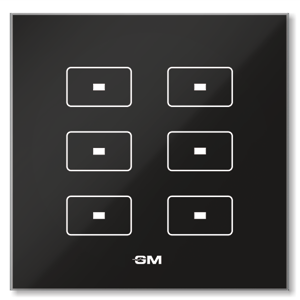

6 Button Touch Switch

MODEL: GCH/TB-06.02.01

The 6 button touch switch allows you to control and program your home lights, fan, Blinds etc You can customize your personal settings; adjust settings for your home with an intuitive menu driven format.

6 Button Touch Switch

PRODUCT FUNCTIONS:

  • 6 Capacitive touch buttons
  • Switching and dimming
  • Blinds and shutter control
  • Scene control
  • Sending of values, e.g brightness
  • Recall and storage scene
  • LED indication
  • Connected directly to the KNX bus without converter


  • Power Supply : Operating voltage 21-30V DC
  • Current Consumption : Max. 12 m A
  • Power Consumption : Max 360 mw
  • Auxiliary Supply Voltage : 21-30V DC
  • Auxiliary Power Consumption : Max 3W
  • Installation : 86 Box Mounted

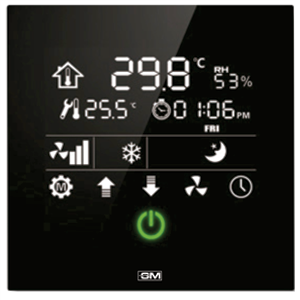

Thermostatic Panel

MODEL: GM-TC002-B

To control the HVAC display indoor and outdoor temperature of room. Also comes with 2dry contact output.

Thermostatic Panel

PRODUCT FUNCTIONS:

  • Storage : – 255°C – 55°C
  • Temperature Detection Accuracy : +-0.5°C
  • Temperature Detection Range : -20° - 50°C
  • Humidity Detection Accuracy : +-3%
  • Humidity Detection Range : 0-100%
  • Installation 86*86*12mm


  • TECHNICAL DATA
  • Power Supply : Operating voltage 21-30V DC
  • Current Consumption : Max. 12 m A
  • Power Consumption : Max 360 mw
  • Auxiliary Supply Voltage : 21-30V DC
  • Auxiliary Power Consumption : Max 2W

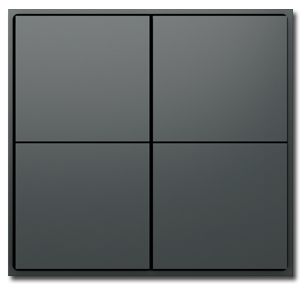

Push Button 8 Fold (4 Square)

MODEL: PB008-WB

The G-Bus push button switch helps set the ideal lights and permits smooth function of drapes, fans and blinds. Push button switches comes in three colours ie, Champagne Gold, Silver and Wise black. It can be used for switching and dimming, scene control, curtain or blinds and roller shutter control.

Push Button 8 Fold (4 Square)

PRODUCT FUNCTIONS:

  • 8 Fold Push Button
  • Switching and dimming
  • Blinds and shutter control
  • Scene control
  • Sending of values, e.g brightness
  • LED indication
  • Connected directly to the KNX bus without converter


  • Power Supply : Operating voltage 21-30V DC
  • Current Consumption : Max. 12 m A
  • Power Consumption : Max 360 mW
  • Auxiliary Supply Voltage : 21-30V DC
  • Auxiliary Power Consumption : Max 3W
  • Installation : 86 Box Mounted

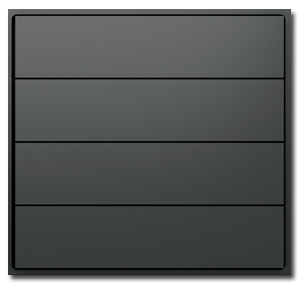

Push Button 8 Fold (4 Rectangle)

MODEL: PB008-PLUS-WB

The 8-Fold push button not only enables you to control and program your home lights, fan, blinds etc, but also empowers you to customize personal settings and modify home settings with an intuitive- menu - driven format.

ush Button 8 Fold (4 Rectangle)

PRODUCT FUNCTIONS:

  • 8/16 FoId Push Button
  • Switching and dimming
  • Blinds and shutter control
  • Scene control
  • Sending of values, e.g brightness
  • LED indication
  • Connected directly to the KNX bus without converter


  • Power Supply : Operating voltage 21-30V DC
  • Current Consumption : Max. 12 m A
  • Power Consumption : Max 360 mW
  • Auxiliary Supply Voltage : 21-30V DC
  • Auxiliary Power Consumption : Max 3W
  • Installation : 86 Box Mounted

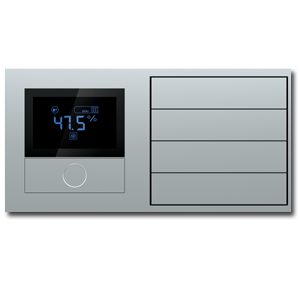

Multifunction Thermostat

MODEL: GM-MTC002-S

The G-Bus Multifunction Thermostat feature ensures complete comfort. It enables one to manage ventilation in the room by utilizing either the home automation interface or a readily accessible smartphone. Likewise, it enables one to change the temperature of the place to warm or cool depending on the atmospheric condition or an individual's desired mood and choice. The temperature is monitored and adopted either automatically or manually, thus conserving energy. Highlights of this products are individual room control, timed operation modes, central and automatic control, safety programs, electrical heating and temperature control.

Multifunction Thermostat

PRODUCT FUNCTIONS:

  • Storage : – 255°C – 55°C
  • Temperature Detection Accuracy : +-0.5°C
  • Temperature Detection Range : -20° - 50°C
  • Humidity Detection Accuracy : +-3%
  • Humidity Detection Range : 0-100%
  • Installation 172*80.5*11mm


  • Power Supply : Operating voltage 21-30V DC
  • Current Consumption : Max. 12 m A
  • Power Consumption : Max 360 mW
  • Auxiliary Supply Voltage : 21-30V DC
  • Auxiliary Power Consumption : Max 2W
